Benjamin Airgun Pump. Please find below the exploded parts diagram, parts list and available spare parts for the Benjamin PCP air rifle hand pump. For any spare parts not listed for the Benjamin airgun stirrup pump please feel free to contact us. Exploded Parts Diagram: Click here for re-seal instructions / strip down guide. Available Spare Parts: Benjamin hand pump. Made specifically for the Crosman/Benjamin PCP pistols & rifles (fits any brand of PCP gun with a male Foster quick-disconnect on its reservoir) Includes a female Foster quick-disconnect on the end of the pump hose. Goes up to 3600 psi (although some of the guns listed above operate on a max pressure of 2000 or 3,000 psi)

Get a Powerful, Reliable, Highly Accurate American made Airgun with a Proud History, Buying a Benjamin-Sheridan Pellet Rifle or Air Pistol. I offer Benjamin-Sheridan Pellet Guns, Parts & Accessories, including High Powered PCP, Nitro Piston, Break Barrel, CO2 and Pump Action Benjamin Air Rifles and Pistols, in .177 Caliber, .22 Cal and 357, at the Best Online Sales Prices.

Benjamin hand pump diagram

As with all PCPs, you need some way to fill up the Fortitude. Usually that means a tank or a compressor, but with the air cylinder on the Fortitude being fairly small and regulated it is a perfect fit for a hand pump. The Air Venturi G7S, the Benjamin Pump, or the Air Venturi MK4 would all be good choices depending on your budget. BT9M22WNP Owner's Manual & EVP (2010-Present) Model Number. BT9M22WNP. Name / Description. Trail NP Hardwood. Nitro Piston. .22 caliber rifle. Single shot-break barrel. Dates of Manufacture. 2010-Present. Have a Benjamin hand pump? Odds are that you are having problems with it right now or you will shortly. Here we have the entire breakdown and reassembly so t...

Benjamin hand pump diagram. Contact Us. Numrich Gun Parts Corporation 226 Williams Ln. Kingston, NY 12401 Phone: 866.686.7424 Q- Can I use the pump to bleed air from the pressure tube in my Benjamin Discovery? A- No, you cannot bleed down the airgun using the pump. A check valve in the gun’s fill adapter is activated by pressure in thetube and will not leak back down when pump is attached. Q- There is a film of oil on the main pump cylinder. Is the pump leaking? Benjamin Desiccant Kit for High Pressure Hand Pump. 4.5 out of 5 stars. 117. 3 offers from $16.42. Benjamin Armada Air Rifle. 3.8 out of 5 stars. 20. 69 offers from $496.82. Benjamin RC2508 Spare Magazine for Marauder Rifle, Fits: .25 Marauder Pistol Only. Re: Benjamin Hand Pump Maintenance, Modifications and Reliability. BTW... You do not have to change the filter (The ones from Harbor Freight). Open them (Unscrew the caps), dump the dessicant onto an aluminum tray and heat in the oven aat 300 degrees til they turn blue.

Benjamin Hand Pump diagram. « on: March 14, 2009, 12:12:29 AM ». I have one that won't build up pressure. I've been searching the net for a parts diagram. Is there a rebuild kit available for the Benjamin hand pump anywhere? Did a search and came up blank. ... Failing that, here's a diagram with the sizes. Finally an English FULL version (sorry it's long) of the complete disassembly and re-assembly of a High Pressure 3-stage Water Cooled Pre-Charged Pneumatic (... Connect the quick-disconnect fitting on the hand pump hose to the fill nipple (Fig. 3) 8. Make certain the bleed valve on the hand pump is fully closed (tighten in a clockwise direction) (Fig. 4). 9. Start pumping and continue until the gauge needles on your pump and on the airgun are between 2000 psi and 3000 psi depending on your desired tune ...

Model Number BHPAC Name / Description Benjamin Recharge Dates of Manufacture 2019 Parts Availability - Owner's Manual BHPAC-515.pdf Parts Diagram - This problem of unserviceable hand pumps has led to a new view on the installation of hand pumps in the developing world. The long term sustainability of the hand pump is now considered heavily before a hand pump is even chosen for a particular site. To keep an installed pump in an operational and serviceable manor, many outside factors are now Attach the handle to the top of the hand pump with the 2 long screws provided. See picture below for assembly of the O-ring and Refill Adaptor for filling. Operation Screw air tank into Refill Adaptor hand tight, make sure O-ring is in place. Find a level surface for hand pump and attach Refill Adaptor to Quick-Disconnect on hand pump. Owner's Manuals and Parts Diagrams Owner's Manuals and Parts Diagrams. Lost a manual or need a part? Well you've come to the right place because this category contains owner's manuals and exploded views of parts diagrams. Click on the links below or you can even do a search.

Screen Shot 2021-03-18 at 2.20.27 PM

www.ebay.com/itm/183074594539EMAIL: COUNTLUYI@HOTMAIL.COM WhatsApp +8615966266636EBAY ACCOUNT : l-us965 Now, the price is $ 90!!!!Remember, y...

Repairing Benjamin pump final step - YouTube

Benjamin Hand Pump Diagram Benjamin hand Pump(big problem), Air guns, Airgun Forum. Diagram link and info. gatewaytoairguns.org/GTA/index.php?topic=20272.0 ...

340 Schematic | Numrich

Thanks for watching. pump should be cleaned yearly at least, more often is better.http://sunopticsusa.com/specialty/pump-parts/Wrenches used12mm13mm Cresent

Pin on Fallout

For a filter, you can get one from Harbor Freight for $8, or a 2 pack from Amazon for $21.50 with free shipping. Then you would need a 1/8″MNPT to 1/4″FNPT fitting (local hardware is usually cheapest). Take out the factory “filter” in the base of the pump and put in the adapter and new filter/drier.

Benjamin Maximus Pump Combo | Pre-charged pneumatic Air ...

Benjamin Hand Pump, Fits Crosman & Benjamin PCP Guns $257.49 $216.29 Benjamin hand pump Made specifically for the Crosman/Benjamin PCP pistols & rifles (fits any brand of PCP gun with a male Foster quick-disconnect on its reservoir) Includes a female Foster quick-disconnect on the end of the pump hose Goes up to 3600 psi...

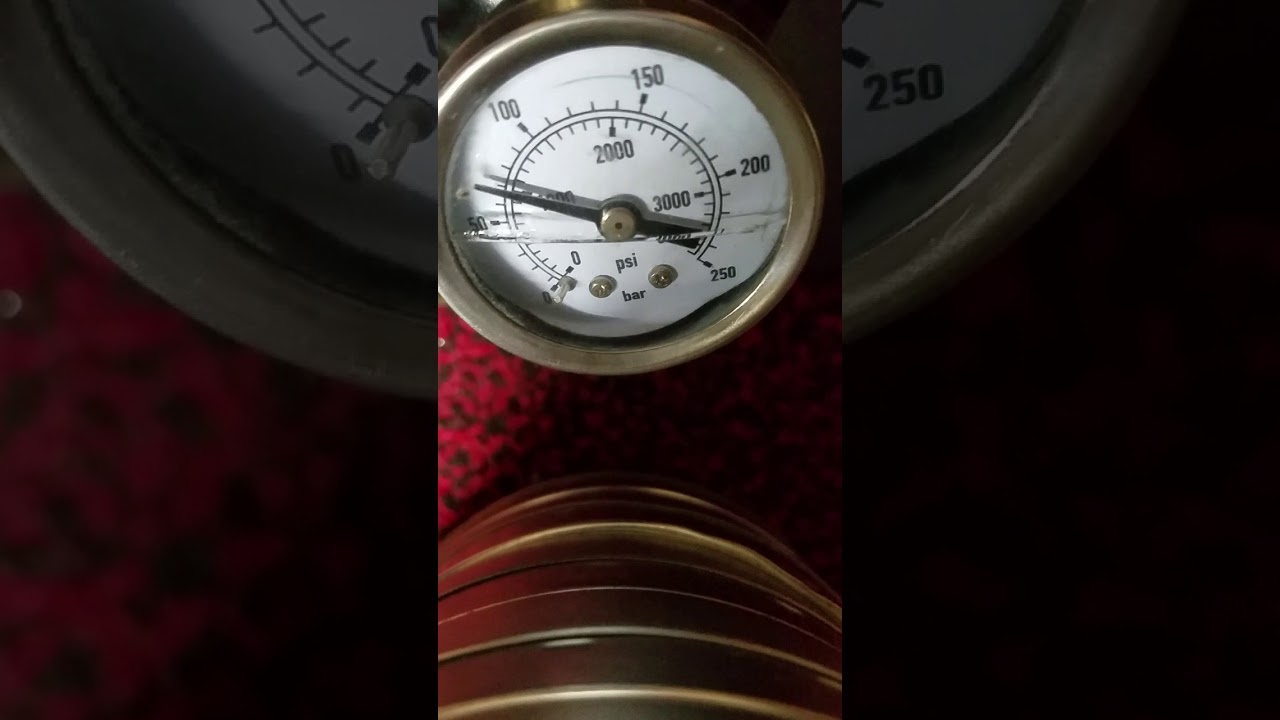

Benjamin Pump - YouTube
