Park Neutral Safety Switch - GM Truck Club Forum Watch on. 0:00. 0:00. 0:00 / 2:09 •. Live. •. Curt goes over the Neutral Safety Switch on a 4L60E transmission. Curt also gives a tech tip about removing the neutral safety switch without breaking the harnesses plastic housing. At the GM factory, they would put silicone in the terminals to prevent water from getting in. PDF Installation and Operation Manual for 4L60E, 4L65E, 4L70E ... 9 Step 4: Transmission Connectors (4L60E) Connect the Solenoid and TSS cables to the transmission. THE CONNECTORS MUST BE KEYED CORRECTLYfor proper transmission operation (see the diagram below for details). Additionally, connect the Neutral Safety Switch and the Backup Lamp Switch.

4l80e Neutral Safety Switch Wiring Diagram - schematron.org Step 1 - Identify the neutral safety switch which is located on the left side Neutral Safety Switch - Wiring Harness Disconnected (Appearance. Im in the middle of making a new harness for my 95 swap 5speed to 4l80e. As most harnesses from the junk yard, my neutral safety switch.

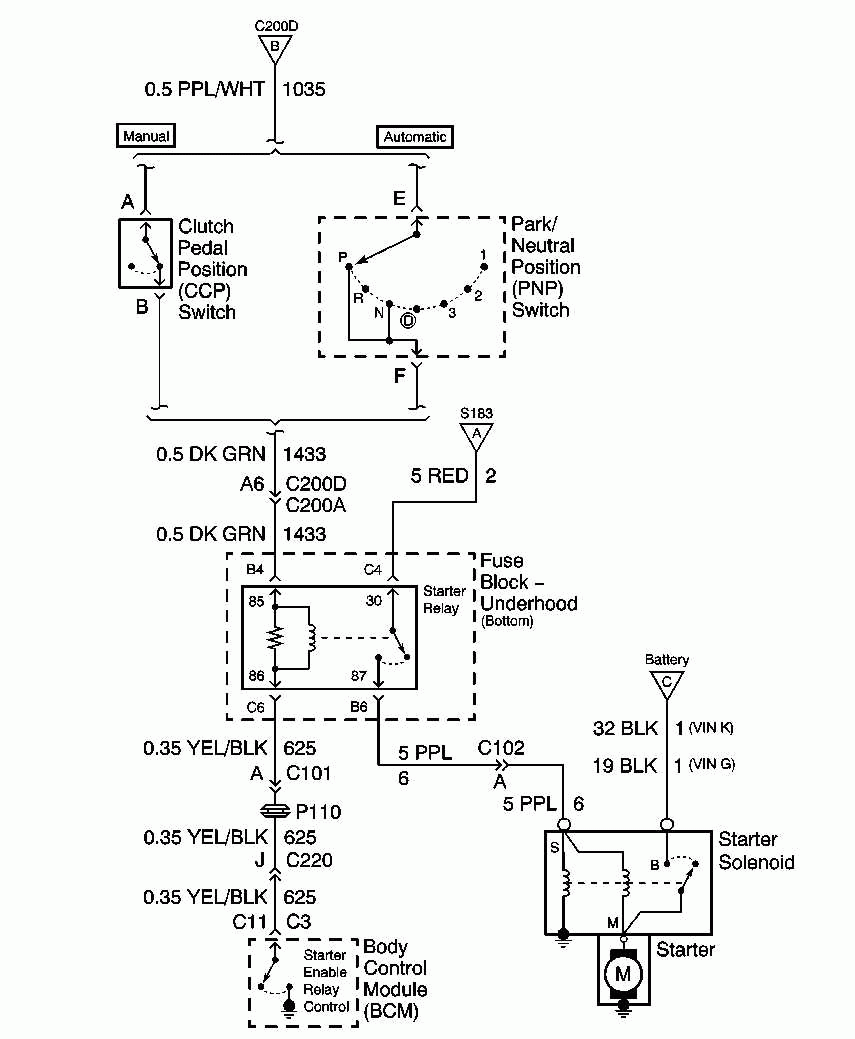

4l60e park neutral switch diagram

4l60e Neutral Safety Switch Wiring Diagram Please click here http:// diagramweb.net 4l60e neutral safety switch wiring diagram best of transmission plug shift solenoid 9, 45rfe rfe tech info solenoid id 4l60e shift 8, 4l60e shift solenoid 7, 62te. i need a color wireing diagram of a 4Le diagramweb.netl safety diagramweb.net where each wire gos to.I cut my savana van pnp when taking it. PDF 4L60E Technical Information - trucktransdiag.com 4L60E Technical Information . ... pressure switch C . P: pressure switch D . O: pressure switch E . ... Gauge port location, use 0-400 psi gauge Reverse: 64-324 psi (min/max) Park, neutral, drive ranges 55-189 (min/max) The folowing chart can be used to determine pressure using scanner to command pressure at all settings to determine epc 4l60E Neutral Safety Switch - YouTube Mar 26, 2019 · Curt explains why you might need to replace your 4l60E Neutral Safety Switch . When removing the harness you could damage the switch itself. We highly recomm...

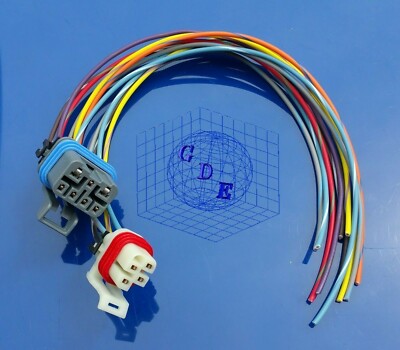

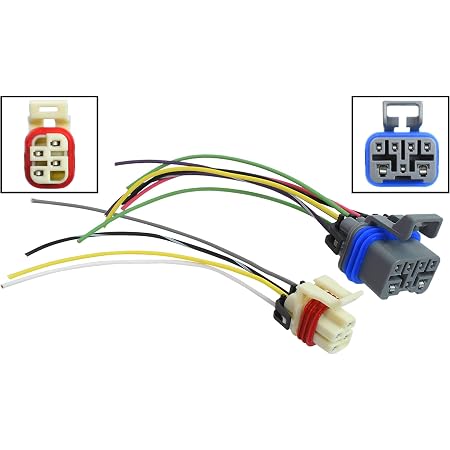

4l60e park neutral switch diagram. I need a color wireing diagram of a 4L60-e trans..safety switch Feb 18, 2010 — neutral safety switch.or where each wire gos to.I cut my 2003 savana van pnp when taking it out to have it rebiuldt.i got a new pnp from a junk ...1 answer · Welcome. Below is what you need. Keep in mind the dark green may be backwards. I have replaced ... Amazon.com: 4l60e neutral safety switch Neutral Safety Switch Connector 7-PIN & 4-PIN For 4L60E 4L80E 4L65E 88862288,15305887 1 Save 5% $14 50 $15.22 Lowest price in 30 days Get it Mon, May 9 - Thu, Jun 2 FREE Shipping ICT Billet Wire Pigtail Transmission Neutral Safety Reverse Light MLPS Switch 7-Wire Connector Compatible with GM 4-speed Automatic 4L60e 4L80e 1995 to 2004 WPNSS30 22 $16 4L60E Neutral Safety Switch MLP Sensor (PRNDL) One 7 Pin ... This is a brand 4L60E Neutral Safety Switch MLP Sensor (PRNDL) One 7 Pin & One 4 Pin Connector. It will fit 4L60E transmission years from 1995-2003. The NSS (Neutral Safety Switch) is a safety mechanism made to make sure your vehicle is only able to start when the transmission gear is set to park or neutral. It is a very important component on ... Diagram Switch Safety Neutral 4l60e Wiring [UGXEIT] 4l60e Neutral Safety Switch Wiring Diagram wiring diagram is a simplified up to standard pictorial representation of an electrical circuitIt shows the components of the circuit as simplified shapes and the talent and signal associates between the devices. Monster Sale Price: $62. That completes the neutral safety switch wiring.

4L60E Transmission Wiring Diagram - Wirings Diagram 4L60E Transmission Wiring Diagram - 1995 4l60e transmission wiring diagram, 4l60 transmission wiring diagram, 4l60e 4×4 transmission wiring diagram, Every electric structure is made up of various different pieces. Each part ought to be placed and connected with different parts in specific manner. If not, the arrangement will not function as it ought to be. 4L60E Park Neutral Safety Switch Align and Install without ... The shaft of the gear selection pawl needs to be cleaned up before putting the switch back on, which is well documented elsewhere, but here's how to get the ... SOLVED: Need wire diagram 4L60E neutral safety switch ... The neutral safety switch is located on the top and toward the base of the steering column almost to the floorboard. To remove or install the neutral safety switch be sure to place the shifter in the neutral position, then dis-connect the wire connector at the neutral safety switch, then remove the securing screws and then remove the neutral ... 4l60e Neutral Safety Switch Diagram | CPT 4l60e 4l60e neutral safety switch wiring diagrams and connector pin out information. 4l60e neutral safety switch wiring diagrams and connector pin out information. Skip to content. CPT 4l60e. Home; Buy Transmissions; Parts. Transmission Coolers; Transmission Fluid; Transmission Pans; Guides.

4L60E Park / Neutral Switch Types. Compatible? - Ls1Tech ... 4l60e neutral safety switch wiring diagram - You will want an extensive, expert, and easy to understand Wiring Diagram. With such an illustrative manual, you will have the ability to troubleshoot, stop, and complete your tasks easily. Motoparty For 4L60E 4L80E Neutral Safety Switch Connector ... Product Description: For 4L60E 4L80E Neutral Safety Switch Connector Pigtail 7 Wire MLPS Range Switch Wire Colors: A: Blue - P/N Signal B: Green - Park Signal C: Red - Ignition Voltage D: Black - Ground E: Red with White Stripe - Starter Relay Supply Voltage F: White - Back-Up Lamp Supply Voltage G: Red with Black Stripe - N/S Signal Product Detail: Condition:New Replacement for Manufacturer ... Chevy 4l80e Neutral Safety Switch Wiring Diagram - Wire Part 118a 1957 chevy ignition switch w keys. 4l60e neutral safety switch wiring diagram thank you for visiting our site this is images about 4l60e neutral safety switch wiring diagram posted by brenda botha in 4l60e category on nov 22 you can also find other images like wiring diagram parts diagram. ... Need Pnp Park Neutral Switch Wiring ... 4l60e Neutral Safety Switch Wiring Diagram - schematron.org mar 06, · you don`t need the prndl switch but the pcm does use it to help driveability, and depending on the year/bodystyle of your wiring harness the power for your starter neutral safety switch passes through the upper connector if you use the truck underhood fuse center. 4l60e wiring diagram & wiring diagram for a 4l60e transmission from 4l60e …

4l60e range switch/back-up lamp problem - The 1947 - Present ...

Neutral Safety Switch - LS1LT1 Forum Discussion Starter · #1 · Jul 6, 2011. Only show this user. I have installed an LT1/4l60E powertrain in my 1955 Chevy Bel Air. The powertrain came from a 1995 Buick Roadmaster Estate Wagon which had a column shift with the neutral safety switch located on the column. My Chevy will have a floor shift so I need to install a neutral safety ...

Anyone have a pinout diagram for 4L60e range sensor/NSS plugs ...

4l60e no safty switch - HPTuners A 4L60E starting off in third and nothing else is in limp mode. It's either not even connected, or not connected properly. There is nothing at all that connects the transmission to a neutral safety switch, yes on trucks there is a PNP switch on the side with the manual shaft going through it, that switch only tells the pcm if it's in park or ...

LS swap neutral safety wire? | Chevy Tri Five Forum

4L60-E Neutral Position Switch Wiring - Chevy Nova Forum Feb 19, 2013 · 8. GRY to pin A11 (Trailer Backup Lamp Supply Voltage - under hood fuse block) 9. LT GRN to pin D3 (Park Neutral Position Switch Park Signal - under hood fuse block) 10. DK GRN to pin F11 (Park/Neutral Start Swicth Signal - under hood fuse block) Trying to build a stand alone harness from this harness and need to know where the last 3 wires ...

Transmission Range or Neutral Switch

Chevy 4l60e Neutral Safety Switch Diagram - … In this article, we have shown you a series of diagrams for your 4l60e Neutral Safety Switch Diagram search, and a few tips that will help you with any issues you may have with your Chevy. Best Brake Pads For Toyota Tacoma Braking Too Hard At A High Speed Liam Hi, I'm the initiator and writer of this blog.

Gears Magazine - Being Neutral, the Allison NSBU Switch

Anyone have a pinout diagram for 4L60e range sensor/NSS ... Aug 19, 2013 · Joined Feb 7, 2003. ·. 223 Posts. Discussion Starter · #1 · Aug 13, 2013. Only show this user. I'm looking for the pinout diagram for the two plugs that go into the range sensor on a 4L60e. These plugs have been cut off of my 5.3 harness, and the ones I'm splicing back in have different color wires. A diagram would solve my problem.

4L60E Neutral safety switch plate on trans? - CorvetteForum ...

4l60e Neutral Safety Switch Wiring - Wiring Diagrams also known as neutral safety switch or range switch wiring. if you need a single 4 wire pigtail or if you need a single 7 wire pigtail, we have them listed also. Luxury 4l60e Neutral Safety Switch Wiring Diagram – Allowed to the blog site, with this moment I’ll explain to you about 4l60e neutral safety switch wiring diagramNow, this is ...

Chevy 4l60e Neutral Safety Switch Diagram | Replicarclub.com

4l80e Neutral Safety Switch Wiring Diagram As most harnesses from the junk yard, my neutral safety switch.4l60e Neutral Safety Switch Wiring Diagram ~ thank you for visiting our site, this is images about 4l60e neutral safety switch wiring diagram posted by Brenda Botha in 4l60e category on Nov 22, You can also find other images like wiring diagram, parts diagram, replacement parts ...

4L60E Park Neutral Safety Switch Align and Install without ...

ISO 4L60e (internal park/neutral switch) wiring diagram ... Jan 12, 2021 · I have a 4-cylinder 2009 colorado with a 4L60e and it has the internal park/neutral switch. Current Performance built me a wiring harness to swap in a V8. The harness came out awesome, unfortunately, it has an extra connector for an external park/neutral switch. I contacted them about changing it and had one person tell me that the 4L60e didn't ...

Neutral Safety Switch Replacement | Street Smart® Transmission

Wiring Diagram For 4l60e Neutral Safety Switch - Wiring ... Feb 11, 2022 · 4l60e Prndl Wiring Hot Rod Forum. 4l60e neutral safety switch diagram park wiring nuetral for the chevy harness help needed pnp 08 nss reverse gear question about prnd connector 4l80e w external need transmission connection types range sensor plugs 2005 express cargo van megashift ls swap wire trans ls1tech camaro location bypass after input safty prndl hot rod forum 4l80 1947 present which ...

How to Replace a Neutral Safety Switch | YourMechanic Advice

4l60E Neutral Safety Switch - YouTube Mar 26, 2019 · Curt explains why you might need to replace your 4l60E Neutral Safety Switch . When removing the harness you could damage the switch itself. We highly recomm...

ISO 4L60e (internal park/neutral switch) wiring diagram ...

PDF 4L60E Technical Information - trucktransdiag.com 4L60E Technical Information . ... pressure switch C . P: pressure switch D . O: pressure switch E . ... Gauge port location, use 0-400 psi gauge Reverse: 64-324 psi (min/max) Park, neutral, drive ranges 55-189 (min/max) The folowing chart can be used to determine pressure using scanner to command pressure at all settings to determine epc
